電磁離合器當前位置：首頁 > 電磁離合器

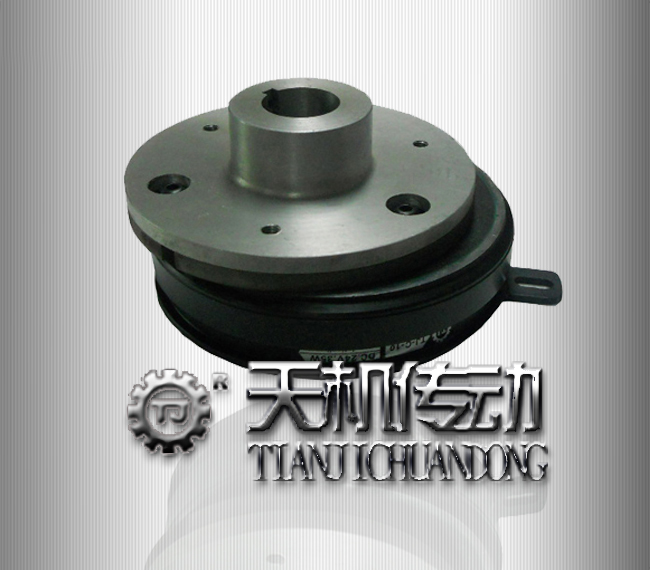

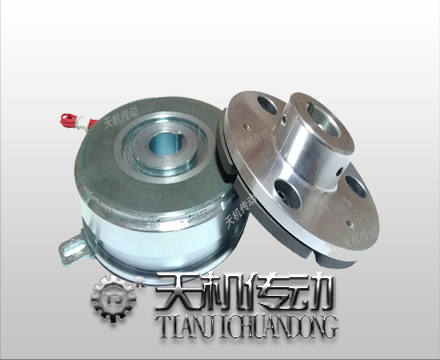

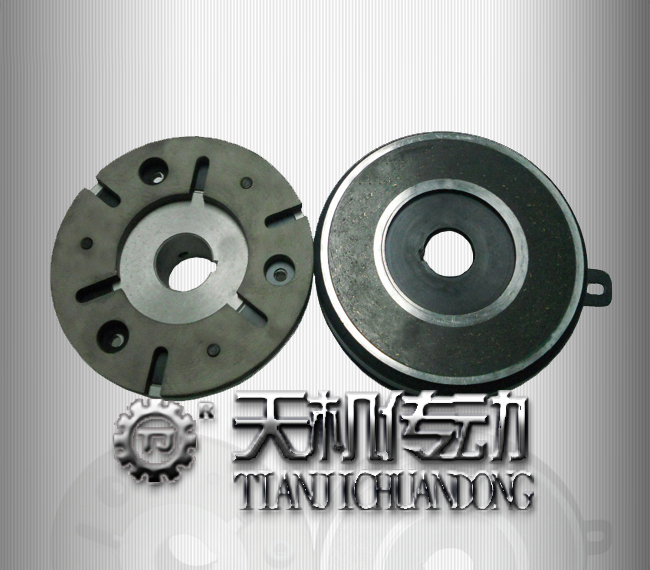

軸承式電磁離合器TJ-C1規格型號

訂購熱線：13316607853

商品介紹

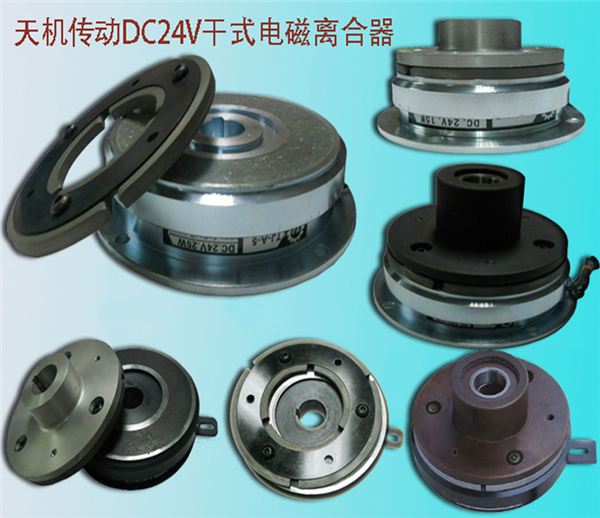

天機傳動該型為軸承式電磁離合器（TJ-C1內軸承安裝型）附帶鋁導座，CNC電腦鉆孔。CNC電腦加工，采用最佳導磁材質來令片（高級非石棉來令片），提高摩擦系數及使用壽命、性能。使用安全電壓DC24V，扭矩規格在6Nm~400Nm，規格型號齊全。適用于連結、切離、變速、寸動、過載保護及正反轉（如何實現正反轉功能）等多用途。軸承安裝型電磁離合器的工作原理是：當線圈有通電時產生磁力吸合“銜鐵”片，離合器處于接合狀態；線圈斷電時“銜鐵”彈回，離合器處于分離狀態。注意，這里指是通電是額定電壓DC24V。

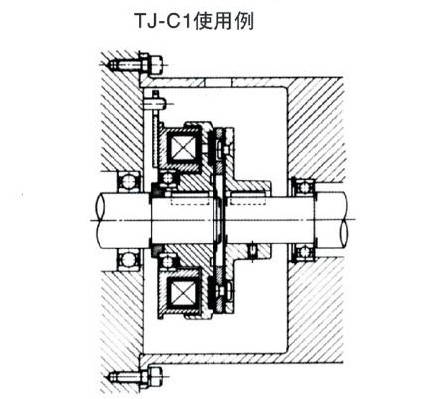

軸承式電磁離合器安裝方向：不需要定心，直接安裝到軸上，由于定子與轉子是一體化，因此可以直接安裝到軸上。轉子通過鍵固定到旋轉方向，軸承通過墊圈緊固，防止軸向旋轉。定子的固定，作用在定子上的力，只有通過支撐軸承摩擦而產生的微小的旋轉力，通過它可以防止定子的錯位旋轉及保護導線，可以將固定到機械的靜止部位，定子支架要在軸向上輕輕并切實進行固定。下圖：

軸承式電磁離合器安裝

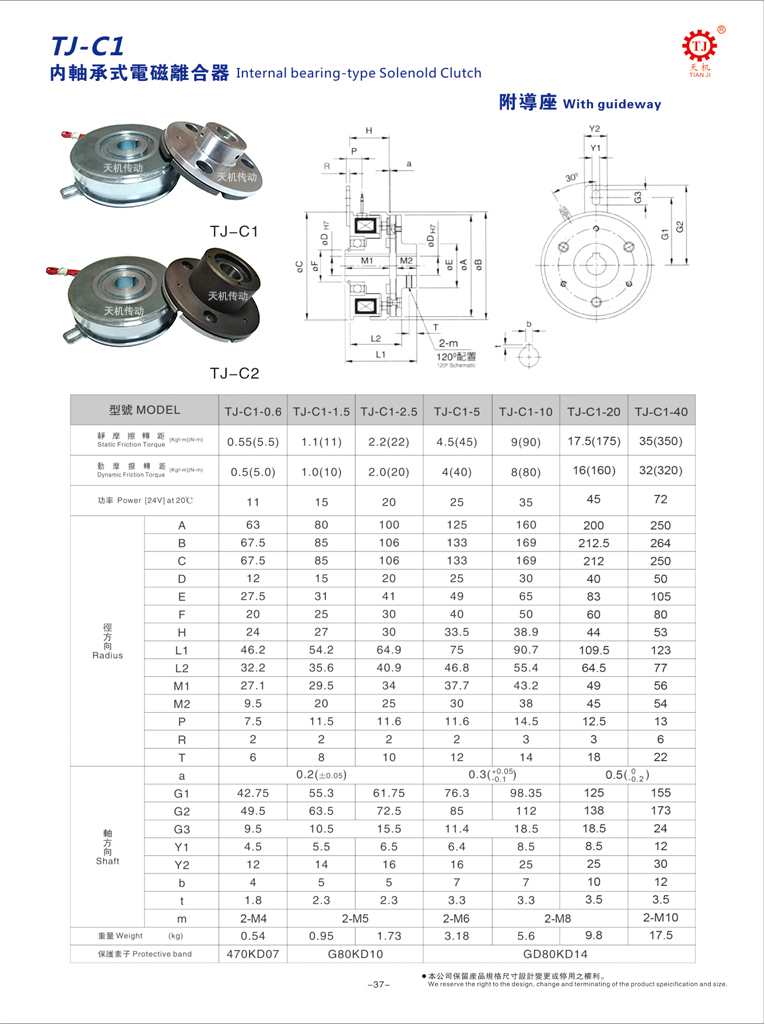

該型軸承式電磁離合器型號安裝尺寸規格詳細說明如下圖：
